eve auto

Autonomous unmanned indoor/outdoor transport by electric vehicles

Autonomous Mobile Transport Robots (AMRs)

EV-based unmanned autonomous transport robots can perform tasks indoors or outdoors at factories and distribution centers.

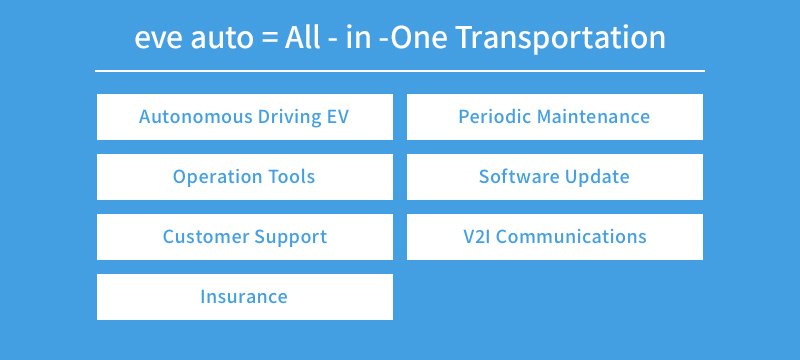

After deployment, the eve auto comprehensive subscription also includes route editing, operational support, and vehicle maintenance. Easy to deploy without any special installation work, the robots can carry loads up to 1,500 kg along routes that are readily editable.

Highlights

Easy

As a transport system employing autonomous driving technology without relying on navigational guides, eve auto requires no installation work and can be operational in as soon as one week.
(Note: Startup generally takes about one month.)
Routes can easily be changed after installation. After consideration of how the robots should perform their tasks, systems can be up and running in a short time.
Two management tools, one for administrators (FMS Console) and one for users (eve auto DASH) facilitate routine operation and analysis as well as on-site operations.

Powerful: Stable Driving, Ample Capacity

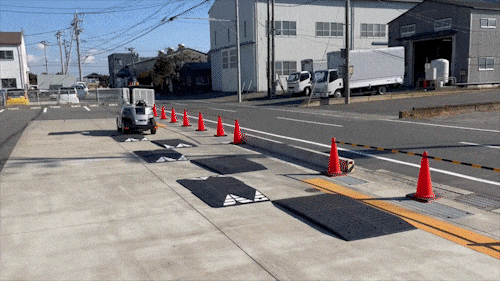

Transport cargo with confidence over bumps or ramps, in the rain, or at night.

Towing capacity: 1.5 tons (including trailer weight)
Payload: 300 kg

Maximum speed (autonomous): 10 km/h

Bumps: ±3 cm (from a stationary position)
Ramps: 7° (autonomous, in 1-ton towing *9.6° when operated manually under no load)
Continuous driving: 40 km (depending on usage and environmental conditions)

Flexible

・Enables flexible editing of routes, number of vehicles used, and interaction with surrounding facilities, which can be changed after deployment.

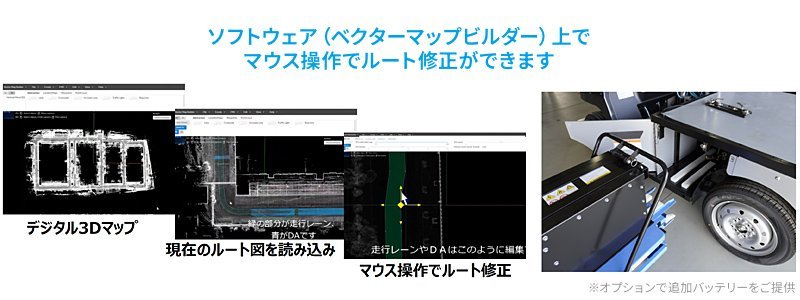

・Routes can be edited with mouse operations in an application that shows a vector-based map.
・Vehicle batteries are replaceable, allowing 24-hour operation.

Specifications

Applications

eve auto began by providing unmanned outdoor transport service on factory grounds. Today, the service has grown beyond factories to support a broad range of other applications at distribution centers, energy and chemical plants, and elsewhere.

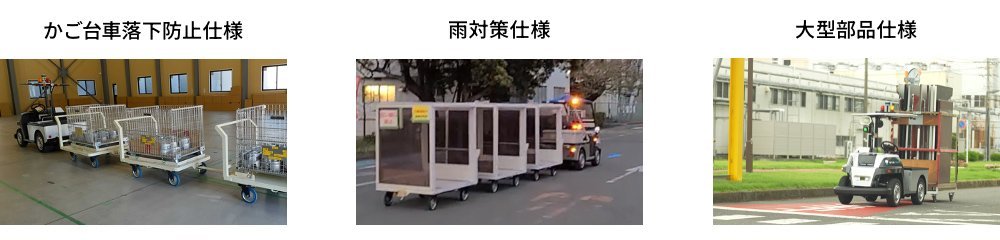

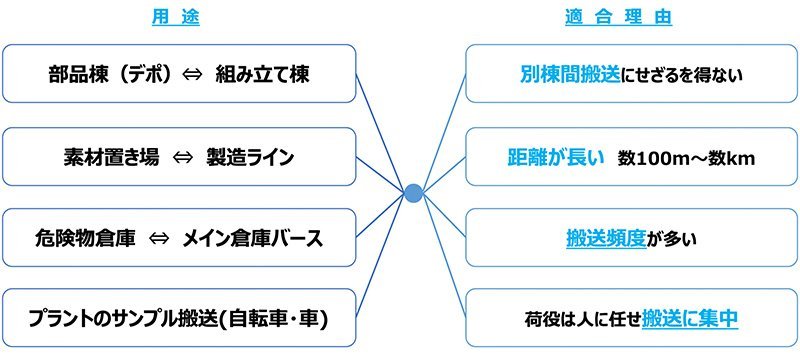

Here are some examples of tasks eve auto can be readily adapted to handle:

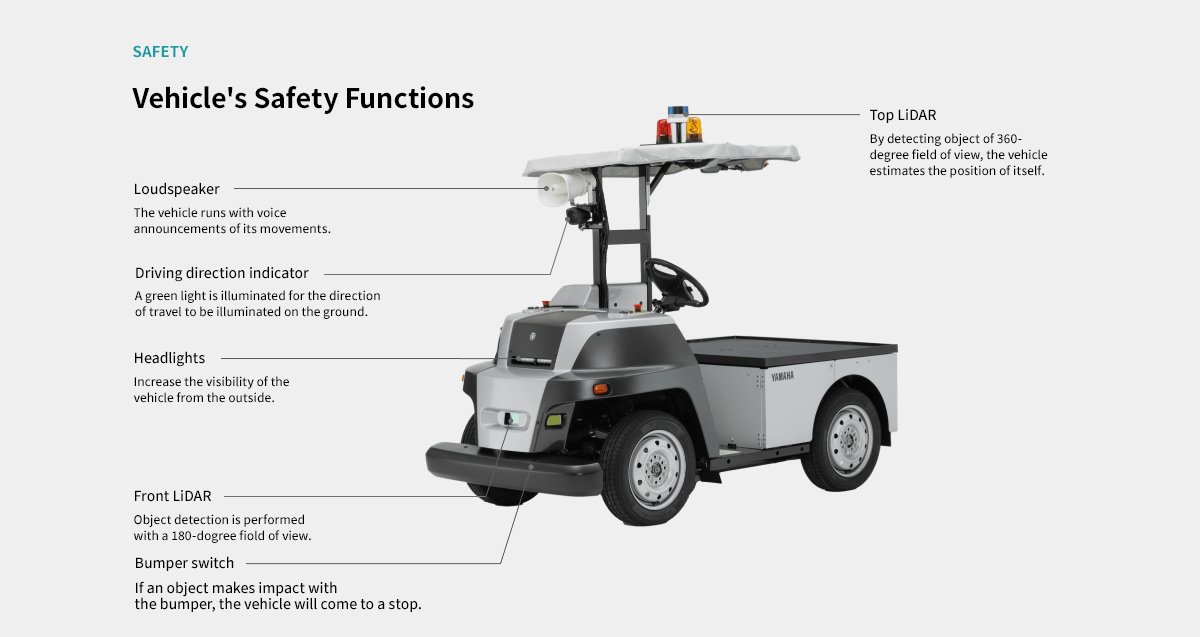

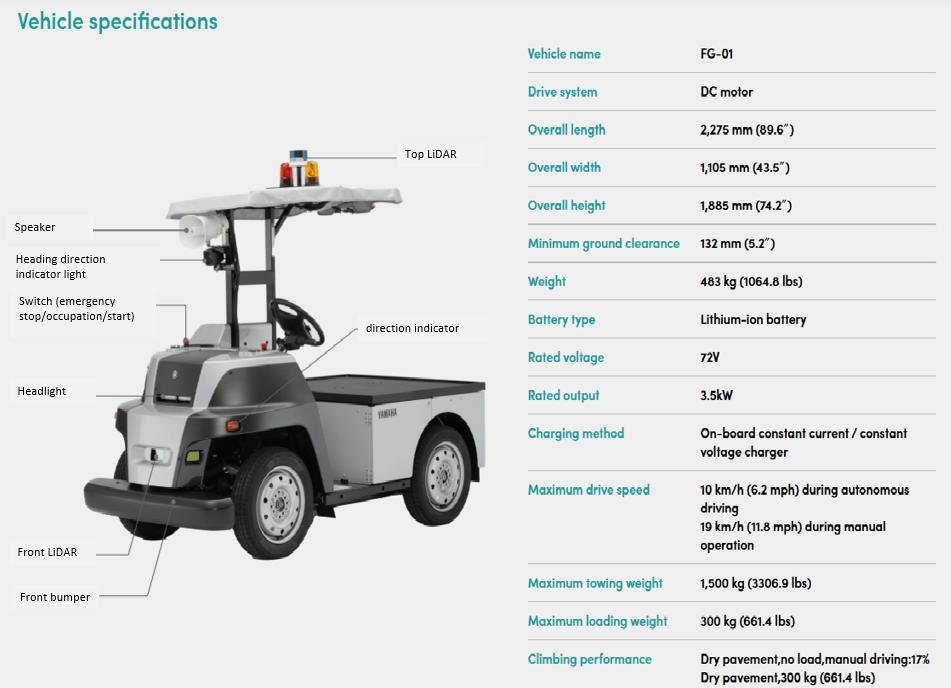

Structural Diagram and System Elements

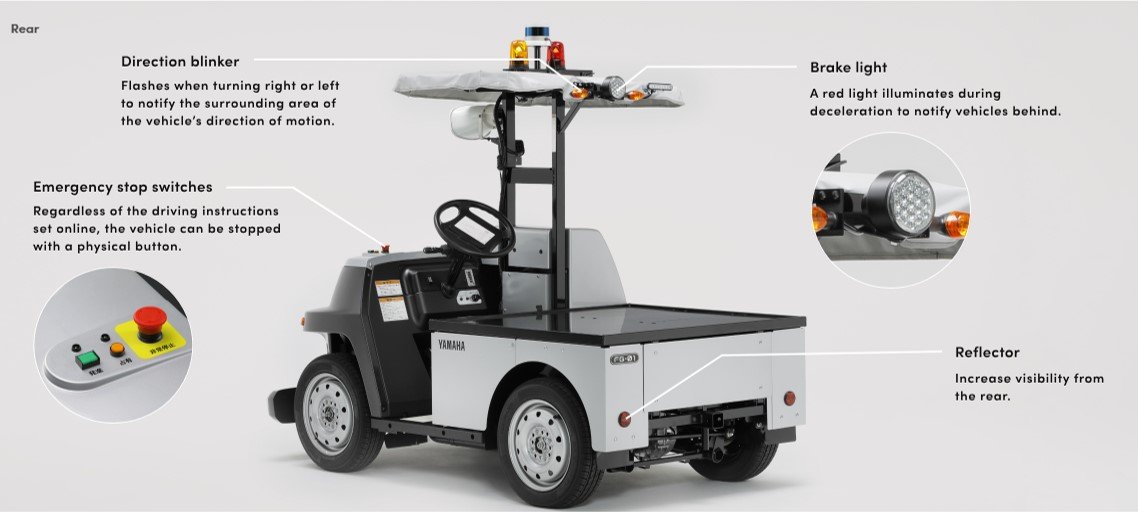

eve auto vehicles are equipped with many features to ensure driving safety, such as obstacle detection sensors and physical buttons to prevent collision.

Competitive Comparison

Although automation in the form of AGVs or AMRs has become more popular indoors, outdoor transport between buildings poses various automation challenges. Manual labor still plays a central role.
This service combines the technology of highly maneuverable electric golf carts with automated driving technology to provide a new solution for distribution sites. eve auto is a safe, efficient unmanned transport service for indoor and outdoor use.

Case Studies

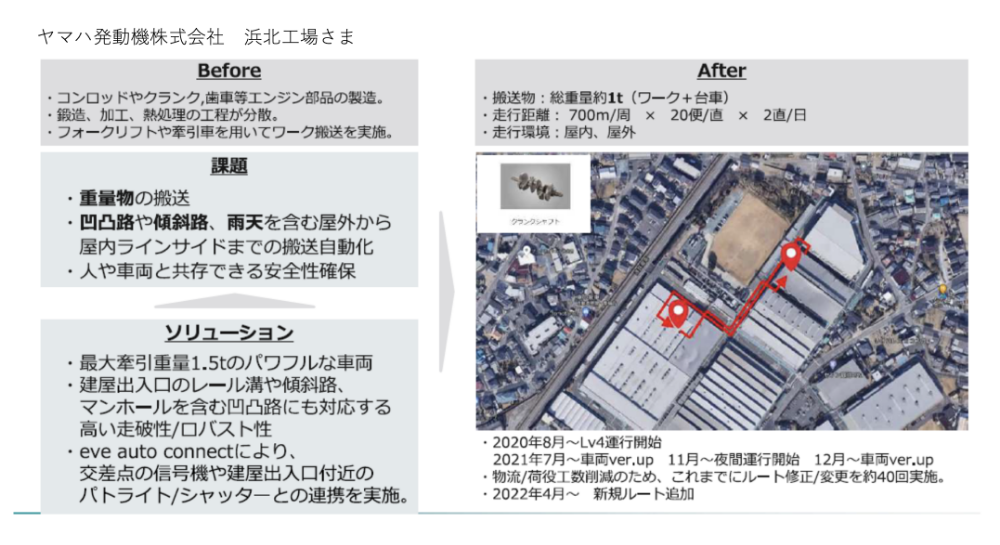

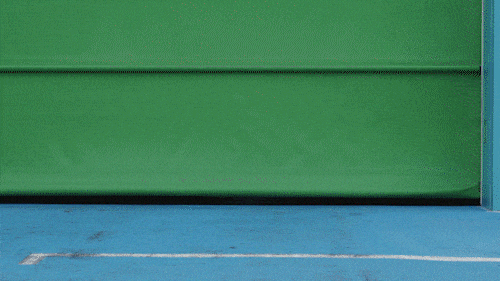

Operation coordinated with traffic signals at intersections and patrol lights/shutters at building entrances and exits

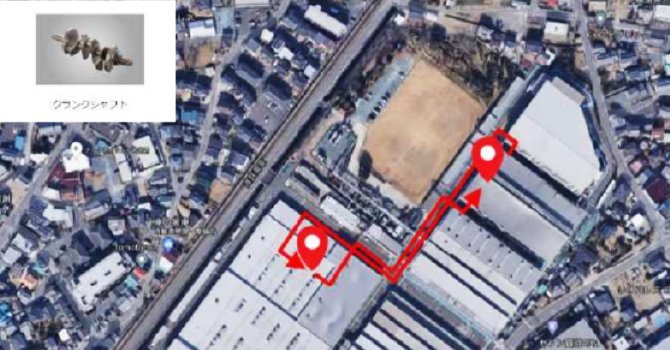

Hamakita Factory, Yamaha Motor

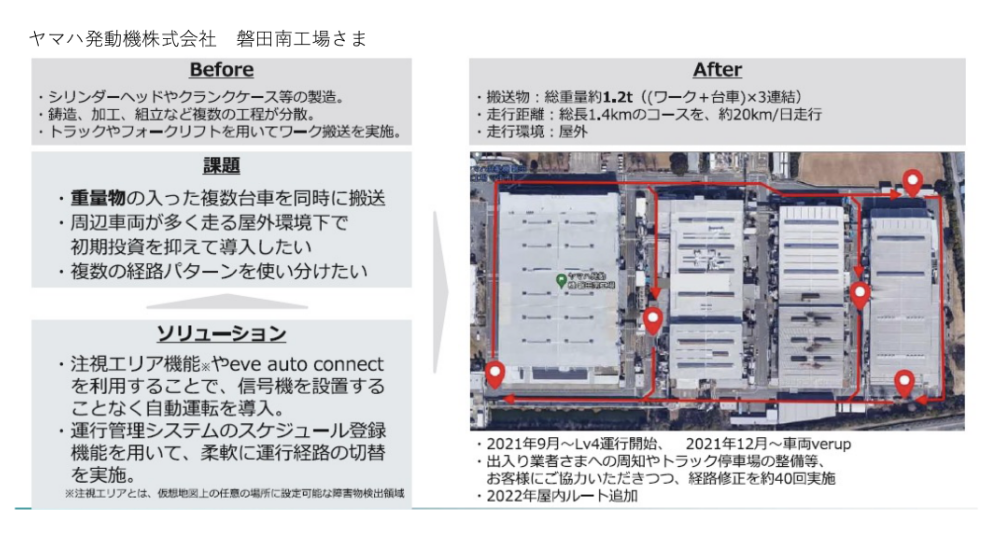

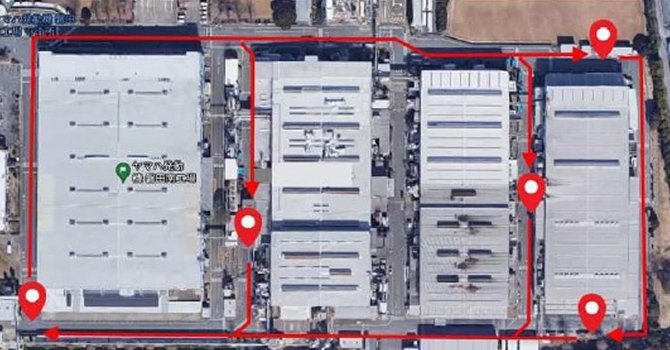

Flexible switching of driving routes using schedule registration in the fleet management system

Iwata South Factory, Yamaha Motor

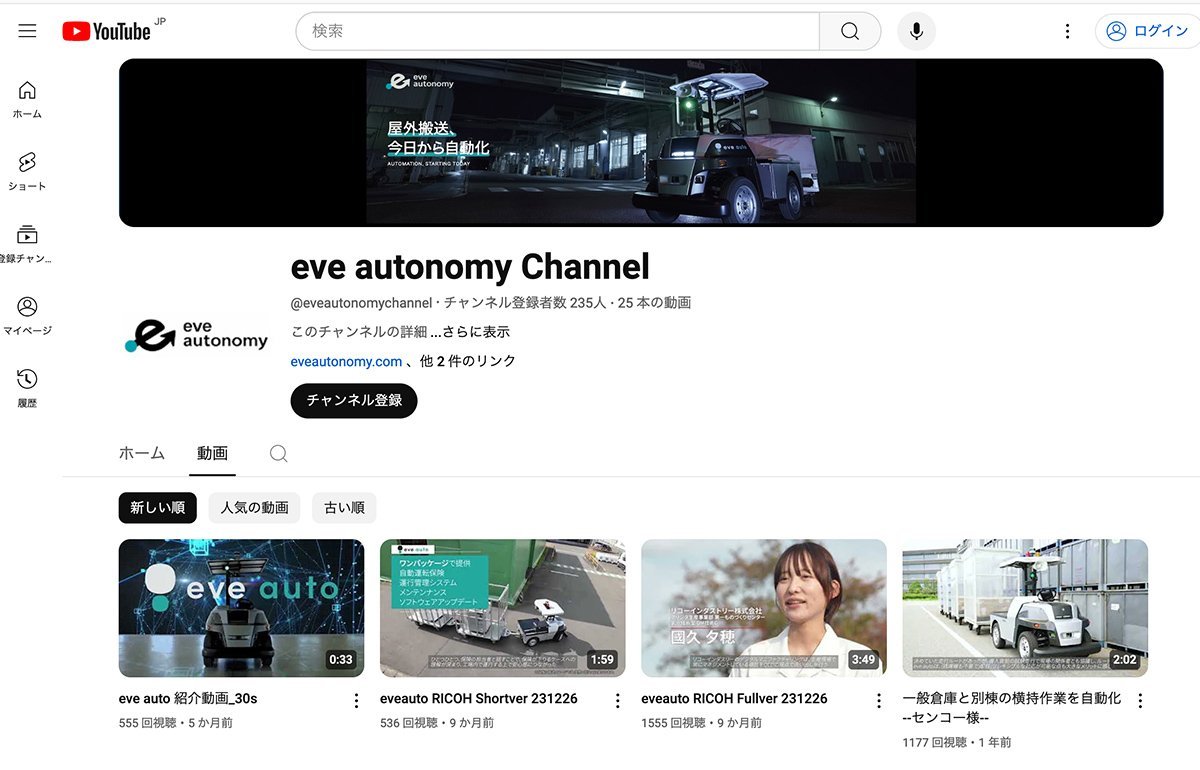

eve autonomy Channel

Go to the eve autonomy Channel to view the case studies.

eve autonomy Channel

FAQ

Introduction

Would we need to install guide lines, reflectors, or the like?

eve auto service does not require the installation of guide lines, reflectors, or other aids.

What benefits can we expect?

In addition to reduced workloads, you can expect a range of benefits from deploying the system, including elimination of demanding, dirty, and hazardous work, easing of labor shortages, and greater flexibility in responding to fluctuating production loads.

We have many transport routes, which makes it difficult to know where to introduce automation.

Drawing from past experience, we can advise you on how to proceed and select optimal routes. (Please contact us for more information.)

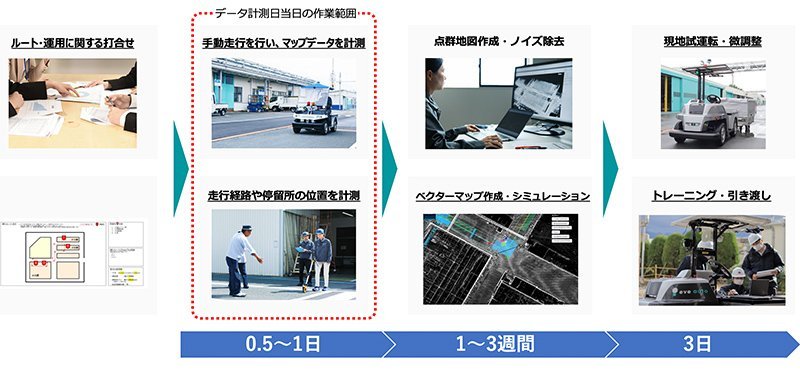

We would like to know the nature of initial deployment tasks.

A vehicle is driven manually to create 3D map data. Additionally, we set up travel routes, determine speeds, stopping positions, and other details, and test autonomous driving before handing over the vehicles.
