Product Power Generation Equipment

Ultralight Solar Panels

  • Energy
Manufacturer
DAS Solar
Country of origin
China

Enables solar installations previously considered too difficult due to load capacity.

Ultralight Solar Panels

At less than half the weight of glass solar panels with the same output, these panels feature a plastic surface layer instead of glass, making them ultralight. In contrast to the relatively weak weather resistance of conventional plastics, these panels are made with high-spec polyvinylidene fluoride, certified to meet the same standards as glass panels. The ultralight weight and high reliability significantly expands installation options for roofs or older buildings for which glass panels would pose problems. For walls, these advantages significantly reduce reinforcement work. A frame with optional metal fittings allows safe and secure mounting to meet Japanese installation standards. Durability is also enhanced by adding two reinforcing bars on the back, enabling the panels to withstand the same snow load as glass solar panels (5,400 Pa).

Highlights

  • Less than half the weight of typical glass panels
  • Metal fittings can be attached to the included frame
  • Highly efficient despite ultralight weight
  • Outstanding weather resistance, even with a plastic surface
  • Load capacity equivalent to conventional glass panels
  • Less glare compared to reflections from glass

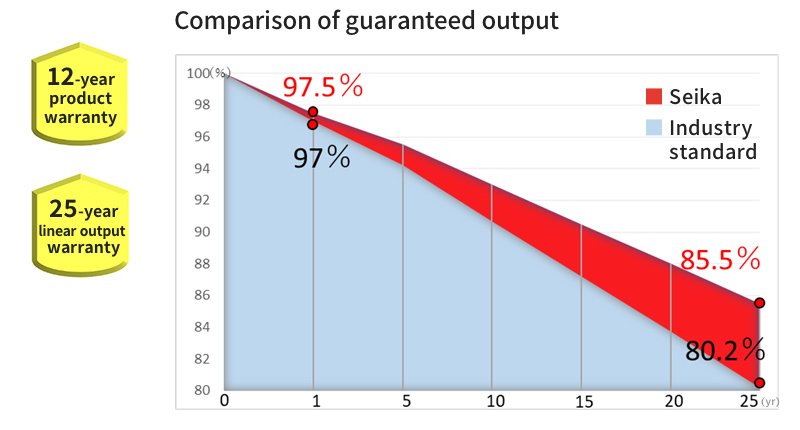

  • Long-term warranty for peace of mind


Specifications

Model

DAS-LF132PA

Maximum output (Pmax, W)

460 W

Dimensions (L×W)

2,110 × 1,142 mm

Frame thickness (H)

30 mm

Weight (per panel)

11.3 kg

Weight (per square meter)

4.7 kg

Module efficiency

19.10%

Cells

Monocrystalline silicon half cell

Cell size, quantity

182 × 91 mm, 6 × 22 = 132

Frame material

Anodized aluminum alloy, 2 bars

Reinforcing bars (back)

2 bars

Junction box

IP68 rated, 3 bypass diodes

Maximum system voltage

1,500 V DC

Open-circuit voltage (Voc, V)

45.65 V

Short-circuit current (Isc, A)

12.76 A

Voltage at maximum power (Vmp, V)

37.87 V

Current at maximum power (Imp, A)

12.15 A

Surface static load capacity (e.g.: snow)

5,400 Pa

Back static load capacity (e.g.: wind pressure)

2,400 Pa

Packing specifications

36 panels/pallet, 792 panels / 40-foot high cube container

*Standard test conditions (STC) for electrical characteristics Irradiance: 1,000 W/m2, ambient temperature: 25°C, spectrum: AM 1.5

Applications

  • Roofs of factories, warehouses, and other buildings where glass solar panel installation is not considered feasible due to load-bearing issues
  • Users seeking light modules who prefer not to use adhesive units such as flexible modules

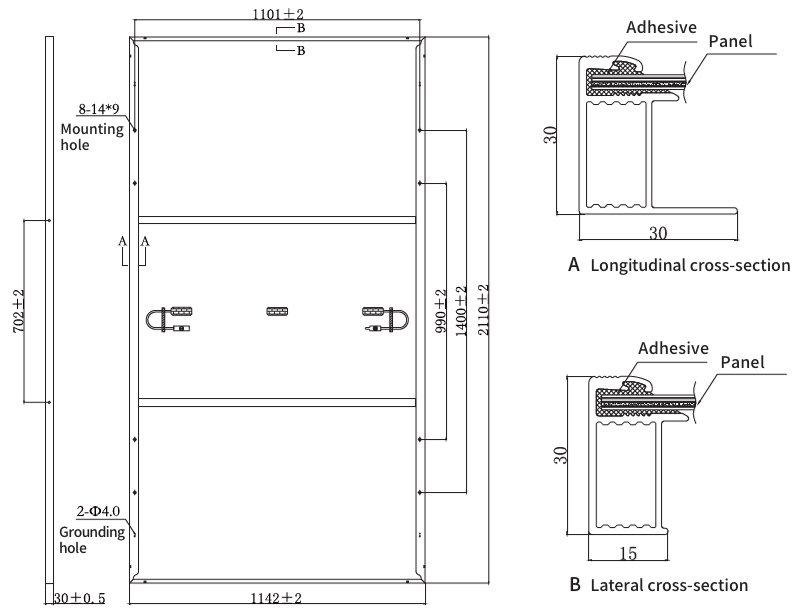

Structural Diagram


Competitive Comparison

Seika ultralight panel with frame Conventional glass panel Ultralight panels of other manufacturers
Panel surface material

Fluoropolymer (PVDF)

Glass

Fluoropolymer (PE, ETFE, etc.)

Weight

4.7 kg/m2

11–13 kg/m2

4–5 kg/m2

Module efficiency

19.10 %

20–23 %

19–20 %

Snow load (surface static load capacity)

5,400 Pa

5,400 Pa

2,400 Pa

Installation

Metal fittings

Metal fittings

Adhesive bonding
